DO PH Temperatur Sensors O2 Meter Dissolved Oxygen PH Analyzer
Features
① Multi-functional Design:
Compatible with a wide range of Luminsens digital sensors, enabling measurements of dissolved oxygen (DO), pH, and temperature.
② Automatic Sensor Recognition:
Instantly identifies sensor types upon power-up, allowing for immediate measurement without manual setup.
③ User-Friendly Operation:
Equipped with a intuitive keypad for full-function control. The streamlined interface simplifies operation, while integrated sensor calibration capabilities ensure measurement accuracy.
④ Portable & Compact:
Lightweight design facilitates easy, on-the-go measurements across various water environments.
⑤ Quick Response:
Delivers rapid measurement results to enhance work efficiency.
⑥ Night Backlight & Auto-Shutdown:
Features a night backlight and ink screen for clear visibility in all lighting conditions. The auto-shutdown function helps conserve battery life.

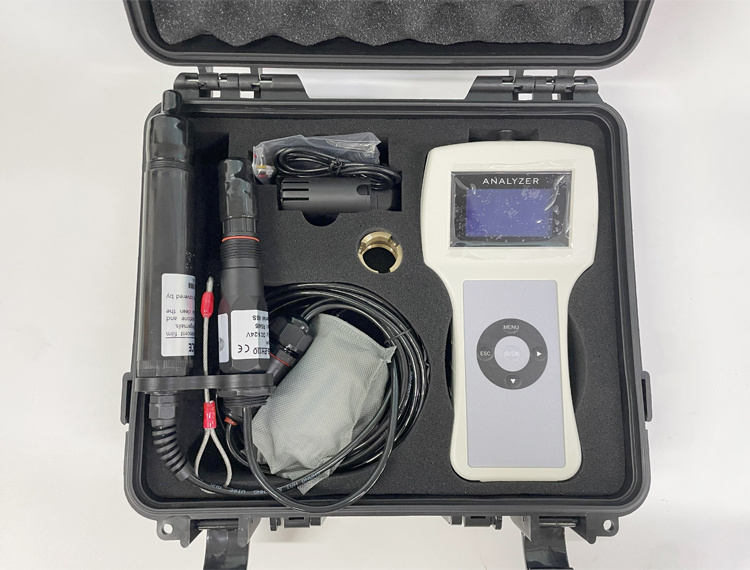

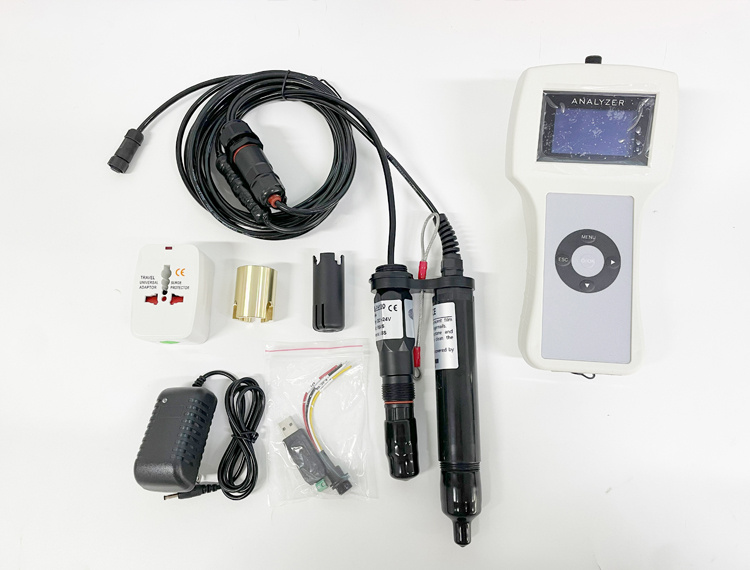

⑦ Complete Kit:
Includes all necessary accessories and a protective case for convenient storage and transportation. Supports RS-485 and MODBUS protocols, enabling seamless integration into IoT or industrial systems.
Product Paramenters
| Product Name | Portable Multi-parameter Water Quality Analyzer ( DO+pH+Temperature ) |
| Model | LMS-PA100DP |
| Range | DO: 0-20mg/L or 0-200 % saturation；pH: 0-14pH |
| Accuracy | DO: ±1~3%；pH: ±0.02 |
| Power | Sensors: DC 9~24V; Analyzer: Rechargeable lithium battery with 220v to dc charging adapter |
| Material | Polymer Plastic |
| Size | 220mm*120mm*100mm |
| Temperature | Working Conditions 0-50℃ Storage Temperature -40~85℃; |
| Cable length | 5m, can be extended according to user need |
Application
① Environmental Monitoring:
Ideal for quick dissolved oxygen testing in rivers, lakes, and wetlands.
② Aquaculture:
Real-time monitoring of oxygen levels in fish ponds to optimize aquatic health.
③ Field Research:
Portable design supports on-site water quality assessments in remote or outdoor locations.
④Industrial Inspections:
Suitable for rapid quality control checks in water treatment plants or manufacturing facilities.
