Drifter Mooring Data Buoy

Short Description:

Drifter is Frankstar’s intelligent wave observation buoy, equipped with high-precision sensors for waves, temperature, and pressure monitoring, and designed for both drifting and moored deployment. It provides real-time, accurate measurements of wave height, direction, period, sea surface temperature, and sea level pressure . Data is transmitted via Iridium satellite to the cloud for instant access and is also stored locally for retrieval after recovery. Compact, robust, and easy to deploy, the Drifter delivers professional, high-quality ocean data to support marine monitoring,


Product Detail

Product Tags

Key Features

● High-Precision Measurements

Utilizing GNSS-based high-precision positioning and advanced algorithms, the Drifter delivers accurate and stable measurements of wave height, wave direction, wave period, and other key parameters.

● Cloud Platform Integration

All collected data is transmitted via Iridium satellite communication to the cloud platform, offering seamless access, real-time query, and convenient data download.

● Modular and Flexible Design

Featured with a modular design, it allows flexible customization of communication modules, battery capacity, and mooring components according to deployment requirements.,which simplifies installation, maintenance, and component replacement.

● Long-Endurance Operation

Equipped with high-capacity lithium batteries and optimized for low-power operation, the Drifter supports long-term, continuous offshore monitoring. Battery capacity can be extended to meet longer mission durations.

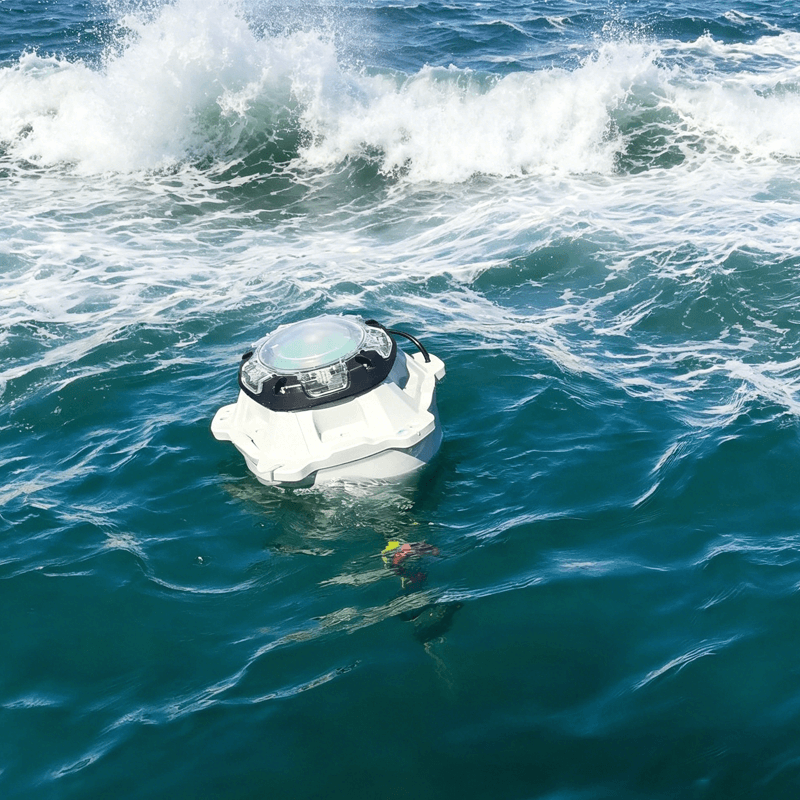

Drifter Mooring Data Buoy (1)

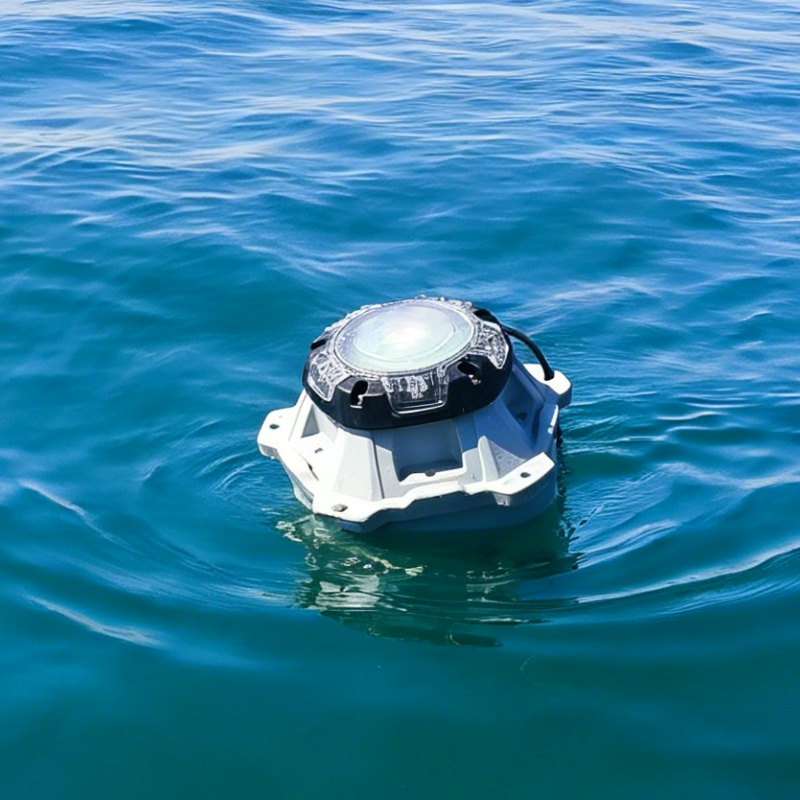

Drifter Mooring Data Buoy (2)

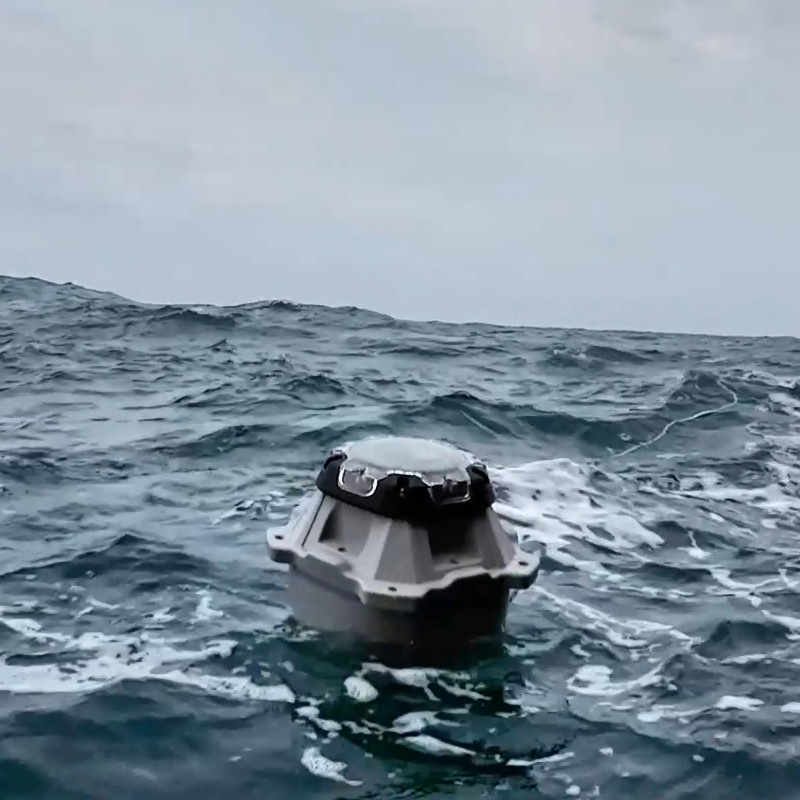

Drifter Mooring Data Buoy (3)

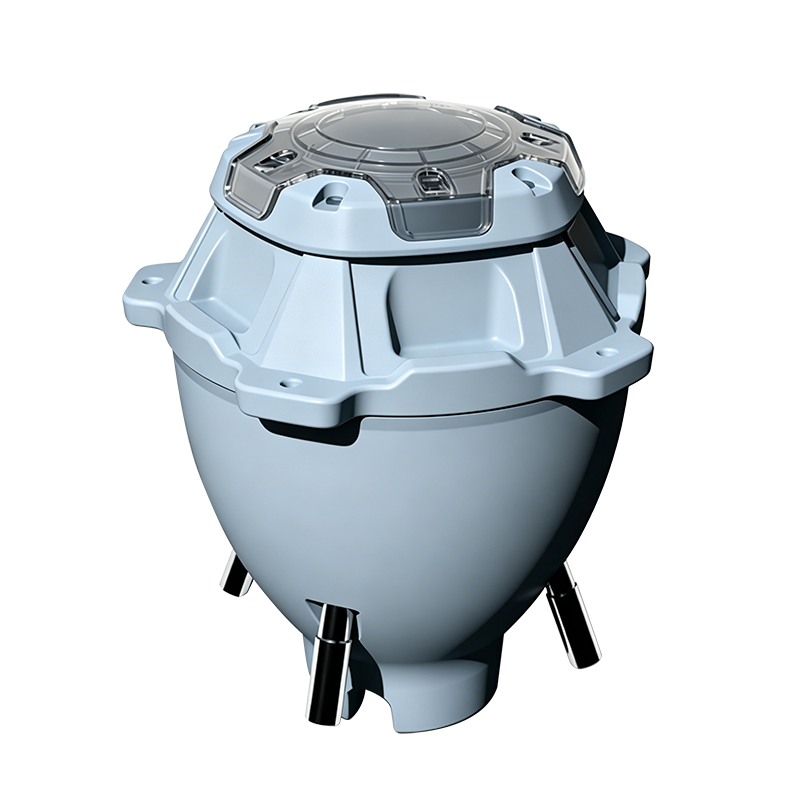

Drifter Mooring Data Buoy

Technical Specifications

Buoy Body

Dimensions

Diameter 530mm、Height 646mm

Weight

34kg (In Air) (With 400Ah battery ~39 kg; rechargeable battery version ~43 kg )

Material

Polyethylene

Color

Navy Gray (Customizable)

Battery

200Ah primary lithium battery

 (Optional 400Ah or 240Ah rechargeable battery)

Communication

Iridium satellite, default reporting interval: every 30 minutes

Storage

32GB SD Card (Optional 256GB)

Cloud Platform

Data Access, Query, and Download

Mooring System

Optional Composite Mooring Assembly

Monitored Parameters

● Position (longitude, latitude)

● Waves: 1/10 wave height & wave period, significant wave height & wave period, mean wave height & wave period, maximum wave height & wave period, swell height& period, wave direction

● Sea surface temperature (SST)

● Sea level pressure (SLP)



Performance Specifications

Parameter

Range

Accuracy

Resolution

Wave height

0m~30m

<1%

0.01m

Wave direction

0°~360°

Wave period

0s~30s

±0.5s

0.01s

Temperature

-5℃~+50℃

±0.1℃

0.01℃

Pressure

700~1100hPa

0.5hPa

0.1hPa
