Frankstar Radar Level Velocity Station adopts non-contact radar measurement technology to achieve high-precision, all-weather and automatic water level data collection for rivers, channels and other water bodies. It effectively overcomes the drawbacks of traditional contact sensors, such as siltation, icing, floating debris impact and biological fouling, ensuring long-term reliable data.

Integrated with a positioning system, 4G/5G communication and a high-efficiency solar power supply system, the Station enables long-term unattended operation in remote field environments without mains power or network coverage, greatly reducing operation and maintenance costs. Collected data is transmitted in real time to the monitoring center or cloud platform, providing a scientific basis for flood control, disaster mitigation, water resource management and ecological protection, while significantly improving emergency response efficiency and the safety of water conservancy facilities.

Send email to us

Product Detail

Product Tags

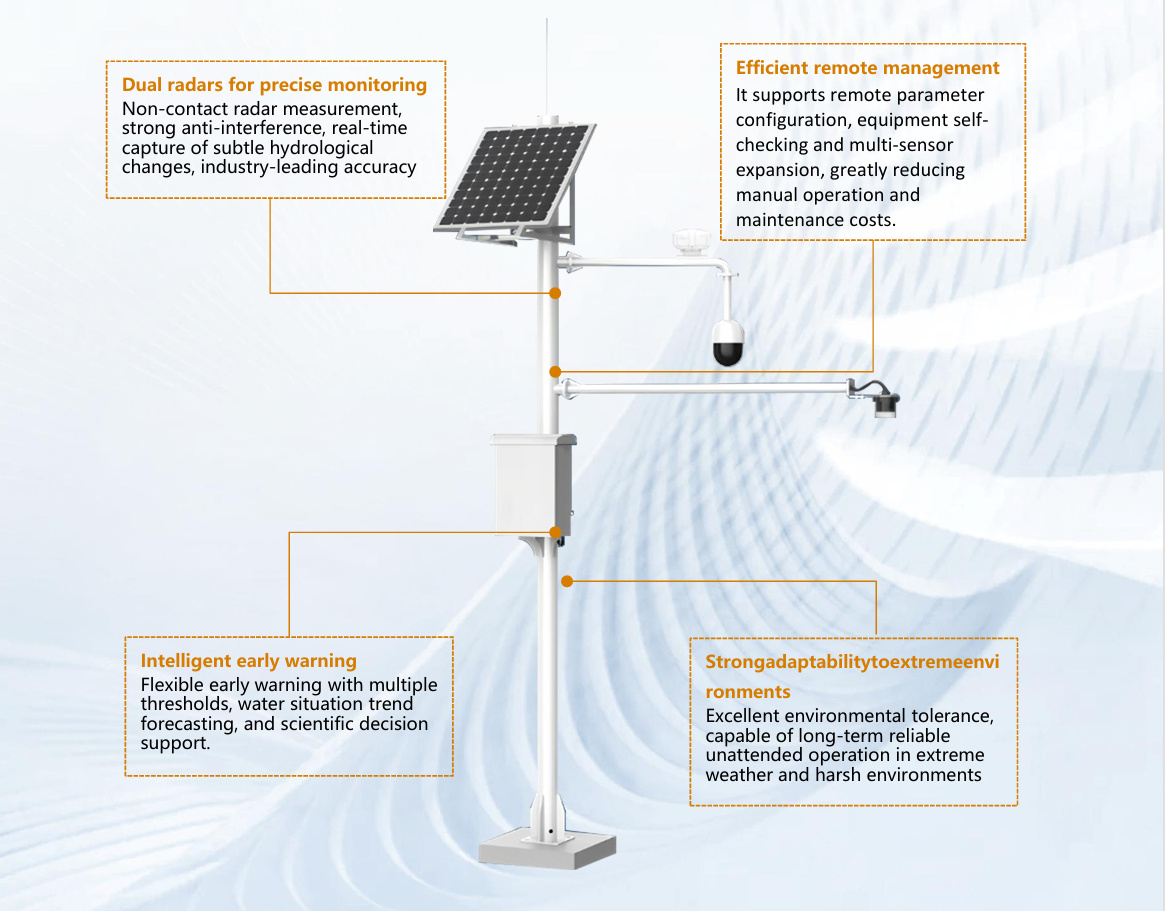

1. Product Advantages

High-Precision Radar Monitoring: Non-contact radar measurement with strong anti-interference performance. Captures subtle water level changes in real time, delivering industry-leading accuracy.
Intelligent Early Warning: Flexible threshold-based alerts and water level trend prediction to support scientific decision-making.
Efficient Remote Management: Supports remote parameter configuration, reducing manual operation and maintenance costs.
Excellent Adaptability to Extreme Environments: Exceptional environmental tolerance enables long-term, reliable unattended operation even in extreme weather and harsh conditions.
Non-Contact Long-Term Reliability: Solves traditional contact sensor issues caused by siltation, icing, floating debris impact, and bio-fouling.
Self-Sustaining & Independent: Integrated off-grid high-efficiency solar power system paired with 4G/5G full network telemetry and satellite positioning.

2. Manufacturing Process

Radar Sensor Assembly: Precision mounting and tuning of high-accuracy radar level and radar flow rate sensing modules.
HD Imaging & Vision Integration: Optics calibration and installation of the 2-megapixel high-definition camera module with night vision features.
Terminal & Gateway Wiring: Enclosure assembly for the Intelligent Acquisition Terminal, integrating data aggregation units, 4G/5G/GSM communication circuits, and SD local storage components.
Solar Power Station Integration: Structural integration of the 45W photovoltaic panel, charge controller, and field mounting brackets.
Protective Enclosure Coating: Weatherproof IP68 seal assembly and 2kV surge/lightning protection installation.

3. Quality Control

Radar Accuracy & Range Calibration: Precision testing of velocity measurements (0.06 - 20 m/s, accuracy ±0.01 m/s; ±1% FS) and water level ranges (0.1 m - 65 m, accuracy ±1 mm).
Environmental & IP68 Waterproof Testing: Operational validation under extreme temperatures (-40°C ~ +85°C) and IP68 water ingress protection testing.
Surge & Lightning Protection Check: High-voltage surge verification testing up to 2kV lightning protection levels.
Full Network & Satellite Positioning Test: Signal testing for 4G/5G full network/GSM transmission, remote access commands, and satellite positioning accuracy (Horizontal ≤ 2.5 m, Height ≤ 5 m).
24/7 Uninterrupted Operation Test: Continuous burn-in testing of HD image acquisition, local SD card recording, night vision switching, and photovoltaic power stability.

4. Product Parameters

Technical Specifications

System Category	Parameter Item	Values / Specifications
Radar Flow Rate Monitor	Measuring Range	0.06 - 20 m/s
	Measurement Accuracy	±0.01 m/s; ±1% FS
	Resolution	0.001 m/s
	Beam Angle	12°
Radar Water Level Monitor	Measuring Range	0.1 m - 65 m
	Measurement Accuracy	±1 mm
	Beam Angle	6°
Image & Video Acquisition	Resolution	2 Megapixels
	Image Transmission	Supports high-definition image transmission
	Night Vision Function	Supported
	Local Storage	Supports local video recording via SD card
	Remote Access & Operating Mode	Supports remote access; 24/7 uninterrupted operation
Communication & Positioning	Communication	4G / 5G full network, supports GSM
	Data Upload Interval	Configurable acquisition frequency
	Positioning Method & Accuracy	Satellite Positioning; Horizontal ≤ 2.5 m, Height ≤ 5 m
Power & Battery Life	Photovoltaic Panel Power	45W, selected according to device power consumption

Environmental Adaptability

Item	Requirement / Performance
Operating Temperature	-40°C ~ +85°C
Protection Level	IP68
Lightning Protection Level	2kV

5. Product Models

Core Components	Description / Capabilities
Radar Level Gauge Sensor	Achieves high-precision water level measurement and monitors water level changes in real time.
Radar Flow Rate Sensor	Provides non-contact measurement of water velocity across 0.06 - 20 m/s.
HD Camera Module	Collects 2MP images and videos in real time, providing intuitive visual support for water level analysis.
Positioning Module	Provides accurate satellite positioning, time synchronization, equipment tracking and emergency dispatch support.
Intelligent Acquisition Terminal	Responsible for data aggregation, equipment control, communication relay and remote maintenance.
Solar Power Supply System	45W photovoltaic array providing stable, sustainable, off-grid power supply.

6. Packaging & Transportation

Sensors & Electronics Packaging: Customized high-density foam-lined shockproof crates for the radar level gauge, radar velocity sensor, HD camera, and acquisition terminal.
Solar Panel & Structural Transit: Reinforced flat packaging for the 45W photovoltaic panel, mounting brackets, and stainless steel support mast.
Field Logistics Support: Modular structure design allowing easy ground transport and rapid installation at remote riverbanks, channels, and field monitoring sites.

7. Product Purpose

To perform all-weather, automatic, and high-precision non-contact monitoring of water levels and surface velocity in open channel and river environments.
To transmit real-time hydrological and visual data to cloud platforms or monitoring centers to serve as a scientific basis for water resource management, flood control, and emergency dispatch.
