Frequency Range

1Hz–150kHz

Linear Frequency Band

1Hz–130kHz

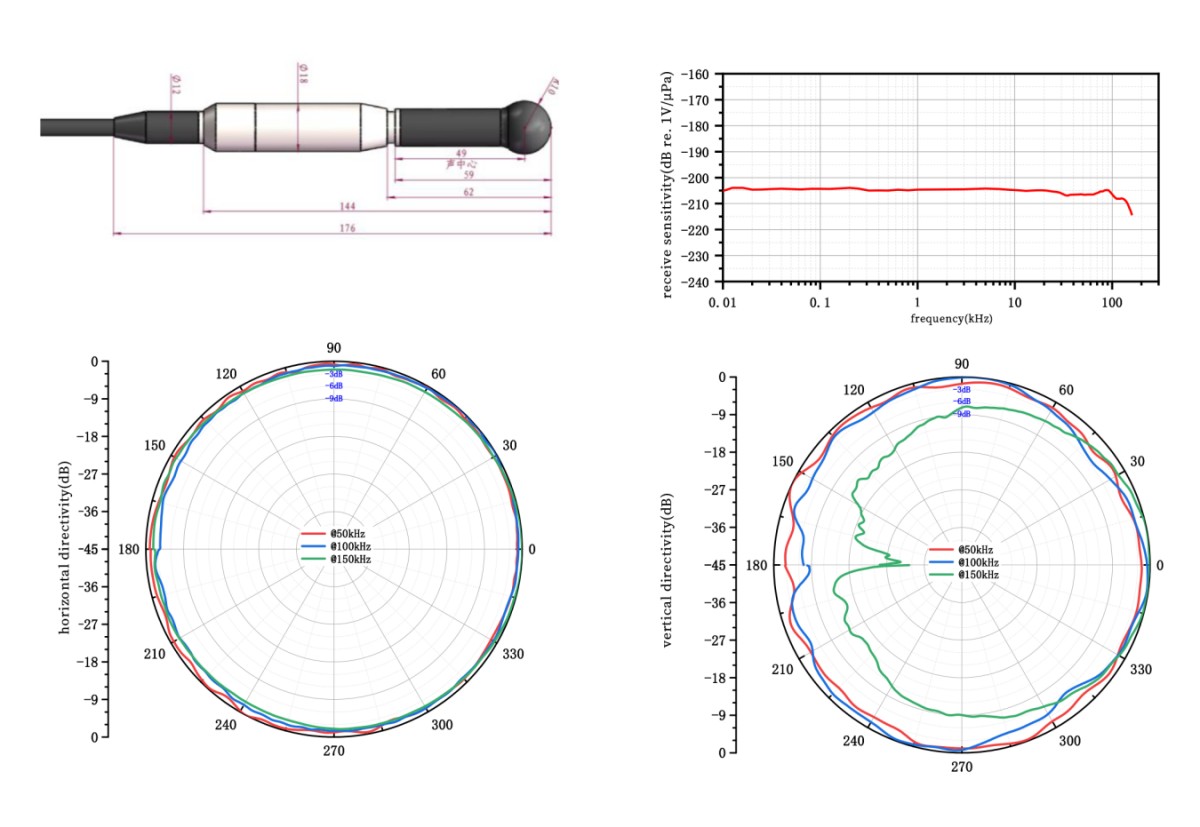

Receiving Sensitivity

-207dB±3dB re.1V/μPa

Horizontal Directivity

Omnidirectional ±2dB@100kHz

Vertical Directivity

270° ±3dB@100kHz

Transmitting Voltage Response

≥130dB re.1μPa/V @ 50kHz–200kHz

Static Capacitance

11.5nF

Operating Water Depth

500m

Operating Temperature Range

-10℃ to +60℃

Storage Temperature Range

-40℃ to +60℃

Cable Length

20m

Connector

BNC

Encapsulation Material

Neoprene

Metal Material

Titanium Alloy

Preamplifier

0–40dB Differential/Single-ended
