SPH6020 Broadband Spherical Hydrophone

SPH6020 Broadband Spherical Hydrophone Featured Image
  • SPH6020 Broadband Spherical Hydrophone

Short Description:

Frankstar SPH6020 Broadband Spherical Hydrophone offers an operating frequency range from 1 Hz to 120 kHz, with a typical sensitivity of -203 dB re 1V/μPa. The piezoelectric element has a capacitance of 19.5 nF, and it maintains an excellent signal-to-noise ratio even when using long extension cables for transmission.Delivering superior acoustic performance and exceptional durability, the SPH6020 is well-suited for a diverse range of application fields.


Product Detail

Product Tags

Technical Parameters

Frequency Band

1Hz-120kHz

Linear Frequency Band

1Hz-100kHz

Sensitivity

-203dB±3dB re.1V/μPa

Horizontal Directivity

Omnidirectivity ±2dB@70kHz

Vertical Directivity

300° ±2dB@70kHz

Transmitting Voltage Response

≥130dB re.1μPa/V @ 30kHz-150kHz

Static Capacitance

19.5nF

Water Depth

500m

Temperature Range

-10℃~+60℃

Storage Temperature Range

-40℃~ +60℃

Cable Length

20m

Connection Interface

BNC

Encapsulation Material

Neoprene Rubber

Metal Material

Titanium Alloy

Pre-amplifier

0-40dB Differential / Single-ended

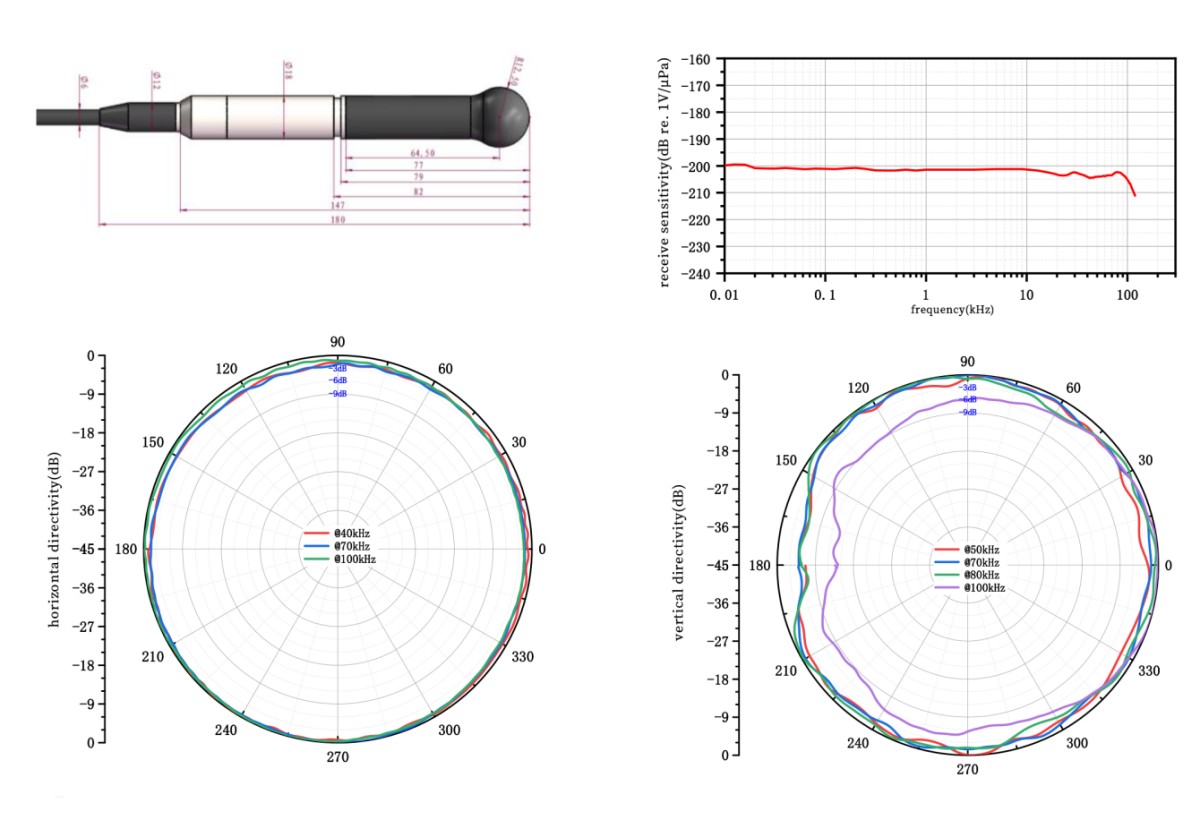

Product Parameters

SPH6020 Broadband Spherical Hydrophone (2)
